รายละเอียดสินค้า
สถานที่กำเนิด: จีน
ชื่อแบรนด์: JGPV
เงื่อนไขการชําระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
รายละเอียดการบรรจุ: บรรจุความปลอดภัยของกล่องไม้อัด
เวลาการส่งมอบ: 14 วัน
เงื่อนไขการชำระเงิน: L / C, T / T, เวสเทิร์นยูเนี่ยน
สามารถในการผลิต: 100 ชิ้นต่อเดือน
การใช้งาน:: |
ทั่วไป |
ใบรับรอง:: |
ISO9001, ISO14001 |
ประเภทกลาง:: |
น้ำ ไอน้ำ และน้ำมัน เป็นต้น |
การทำงาน:: |
ท่อระบายน้ำคอนเดนเสท |
การเชื่อมต่อ:: |
การเชื่อมต่อสกรู |
ประเภทการติดตั้ง:: |
เมาท์โดยตรง |
มาตรฐานหรือไม่มาตรฐาน:: |
มาตรฐาน |
ทางไหล:: |
สองทาง |
การกระตุ้น:: |
คู่มือ, ไฟฟ้า, นิวเมติก, อัตโนมัติ |
ประสิทธิภาพการปิดผนึก:: |
การปิดผนึก |
อุณหภูมิในการทำงาน:: |
อุณหภูมิปกติและอุณหภูมิสูง |
การประยุกต์ใช้แรงดัน:: |
ความดันปกติ |
การรับประกันคุณภาพ:: |
18 เดือน |
การใช้งาน:: |
ทั่วไป |
ใบรับรอง:: |
ISO9001, ISO14001 |
ประเภทกลาง:: |
น้ำ ไอน้ำ และน้ำมัน เป็นต้น |
การทำงาน:: |
ท่อระบายน้ำคอนเดนเสท |
การเชื่อมต่อ:: |
การเชื่อมต่อสกรู |
ประเภทการติดตั้ง:: |
เมาท์โดยตรง |
มาตรฐานหรือไม่มาตรฐาน:: |
มาตรฐาน |
ทางไหล:: |
สองทาง |
การกระตุ้น:: |
คู่มือ, ไฟฟ้า, นิวเมติก, อัตโนมัติ |
ประสิทธิภาพการปิดผนึก:: |
การปิดผนึก |
อุณหภูมิในการทำงาน:: |
อุณหภูมิปกติและอุณหภูมิสูง |
การประยุกต์ใช้แรงดัน:: |
ความดันปกติ |
การรับประกันคุณภาพ:: |
18 เดือน |
Application: | General |
---|---|
Certification: | ISO9001, ISO14001 |
Medium Type: | Water, steam and oil etc. |
Function: | Condensate drain |
Connection: | Screw connection |
Mounting Type: | Direct Mount |
Standard: | Standard |
Flow Direction: | Two way |
Actuation: | Manual, Electric, Pneumatic, Automatic |
Sealing Performance: | Sealing |
Working Temperature: | Normal Temperature And High Temperature |
Pressure Application: | Normal Pressure |
Quality Warranty: | 18 Months |

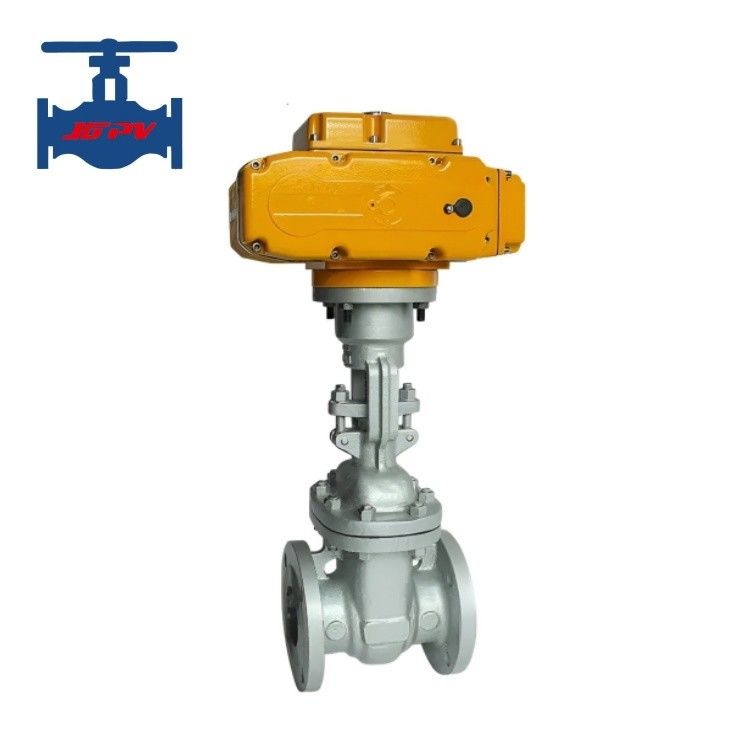

Gate valves are closing elements that move vertically along the centerline of the passage, primarily used for pipeline shutoff applications. These valves are designed exclusively for full open/close operation and are not suitable for flow regulation or throttling.
Nominal Diameter DN (mm): | 50~200 |
---|---|
Nominal Pressure PN (MPa): | 1.6 |
Test Pressure (MPa): | Strength (water): 2.4 | Enclose (Water): 1.76 |
Main Components: |
Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron |
Working Temperature: | ≤150℃ |
Compatible Media: | Water, oil, steam |
