รายละเอียดสินค้า
Place of Origin: China
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100pcs per month
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

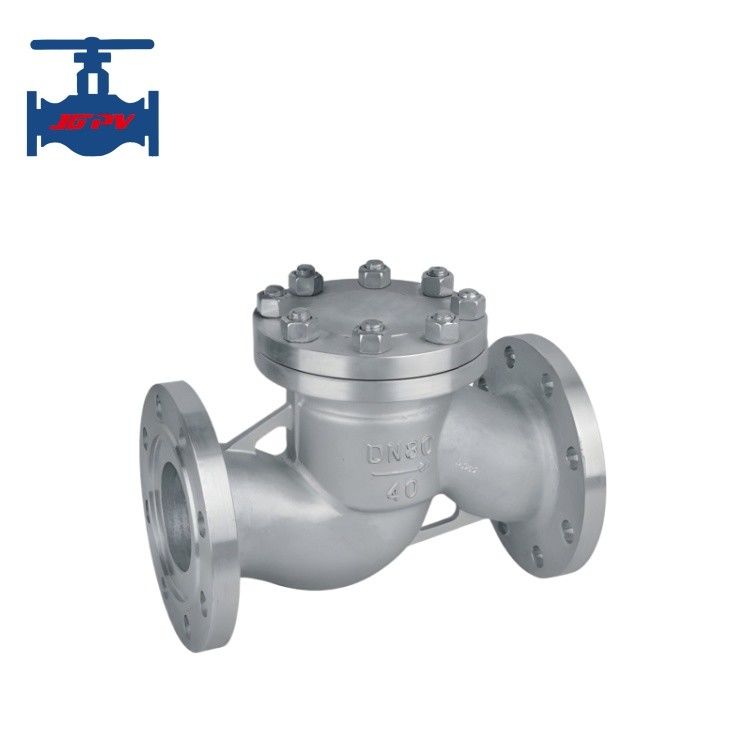

Highlight: Lift type check valve
Product introduction:
A lift check valve is a type of check valve in which the disc slides along the vertical centerline of the valve body. Its structure
is similar to that of a globe valve, with the body and disc being the same as those of a globe valve. A guide sleeve is
machined on the upper part of the disc and the lower part of the bonnet, allowing the disc to move up and down freely within
the guide sleeve. When the medium flows in the forward direction, the disc is pushed open by the medium's thrust. When the
medium stops flowing, the disc drops onto the valve seat by its own weight, preventing the reverse flow of the medium. This
type of valve is widely used in various fields such as chemical, metallurgical, and pharmaceutical industries, and should be
installed horizontally in pipelines.
Product technical parameters:
|
Diameter nominal DN(mm) |
50～300 |
|
|
Pressure nominal PN(MPa) |
1.0～2.5 |
|
|
Pressure test Ps(MPa) |
Strength test (water) |
1.5～3.75 |
|
Sealing test (water) |
1.1～2.75 |
|
|
Connection way |
Flange |
|
Product features:
1. check valve must be installed and used, that is medium flows in the direction of the arrow shown.
2. Its small volume, light weight, good processing technology, is one of the development direction of check valve, but the fluid resistance coefficient is slightly larger than swing check valves.
3. When the medium flows in the specified direction, the valve disc is subject to the action of the medium force, when the medium counter flow is opened, due to the weight of the valve disc and the valve disc is subject to the action of the medium reverse force, so that the sealing surface of the valve disc and the valve seat is closed, to prevent the medium flow-back purpose.
4. The sealing surface of valve body and disc is overlaying with stainless steel
