รายละเอียดสินค้า
Place of Origin: China
เงื่อนไขการชําระเงินและการจัดส่ง
Minimum Order Quantity: 1set
Packaging Details: 100pcs per month
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: Plywood box safety packing
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

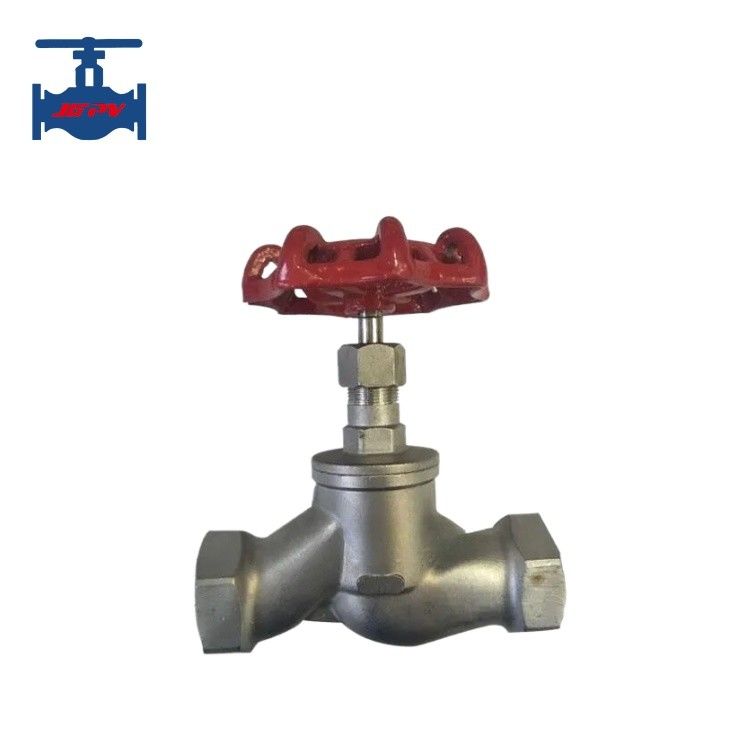

Highlight: Globe valve
Product introduction:
Globe valves, also known as stop valves, belong to the category of force-sealed valves. The stem axis of a globe valve is perpendicular to the sealing surface of the valve seat. It operates by driving the valve core up and down to open or close the valve. Its closing element is a plug-shaped disc with a flat or conical sealing surface. The disc moves linearly along the centerline of the valve seat. Therefore, when the valve is closed, pressure must be applied to the disc to force the sealing surfaces to prevent leakage.
Product technical parameters:
|
15~300 |
||
|
Nominal Pressure PN (MPa) |
1.6 |
|
|
Test Pressure (MPa) |
Strength (water) |
2.4 |
|
Enclose (Water) |
1.76 |
|
|
Main Components |
Body |
Stainless steel |
|
Bonnet |
Stainless steel |
|
|
Dsic |
Stainless steel |
|
|
Stem |
Stainless steel |
|
|
Yoke nut |
Brass |
|
|
Working temperature |
≤200℃ |
|
|
Medium suitable |
Water, steam, oil and weak corrosive mediums |
|
|
Connection |
Flange connection |
|
Product features:
1. Globe valve with small friction between the sealing surface in the process of opening and closing;
2. Globe valve with low opening height, easy to manufacture and maintain.
3. Globe valve not only suitable for low pressure, but also suitable for high pressure.
4. The structure length of globe valve is larger than gate valve, meanwhile, the fluid resistance is large, and the sealing reliability is not strong in long-term operation.
